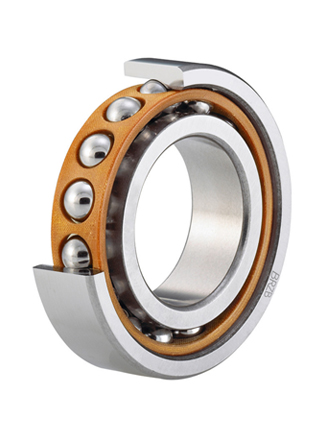

7003AC



BRZB offers a board range in the 70 series regarding dimensions, suitable RPM, and load capabilities.

Standard spindle bearings
High RPM suitability and rigidity
High cost-efficiency and reliability
Standard contact angles of 15° and 25°
Reference RPM factor n x dm = 1.7 x 106 mm/min
High load rating
Also available as hybrid ball bearings
Inquiry Now Download PDF

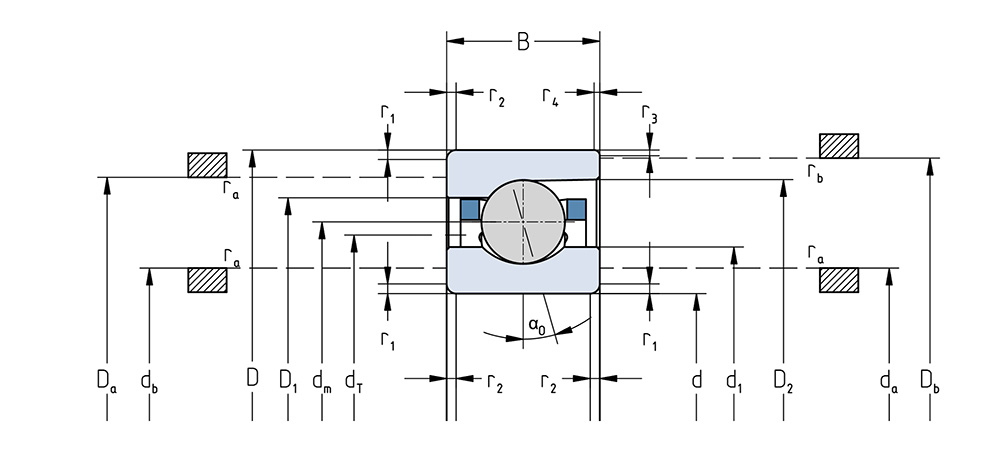

Technical specification

  • Basic Properties

    Contact Angle α 25 °
    Inner Diameter d 17 mm
    Outer Diameter D 35 mm
    Width B 10 mm
    Chamfer dimension r min 0.30 mm
      r1min 0.15 mm
    Distance Side Face to Pressure Point a 11.10 mm

  • Load Data

    Basic Dynamic Load Rating C 6.30 kN
    Basic Static Load Rating C0 3.65 kN
    Limiting Speed Grease 38,500 r/min
      Oil-air 57,700 r/min
    Fatigue Load Limit Pu 3.350 kN
    Calculation Factor for Equivalent Loads  f0 14.500

  • Preload & Rigidity

    Light A 65 N
      Cax 53 N/μm
    Medium B 190 N
      Cax 74 N/μm
    Heavy C 380 N
      Cax 94 N/μm

  • Mass

    Mass m 0.040 kg
Industries
7003AC

Medical Equipments

Our roller bearings are designed to meet the most stringent hygienic requirements, crucial for medical and pharmaceutical applications.

Learn More
7003AC

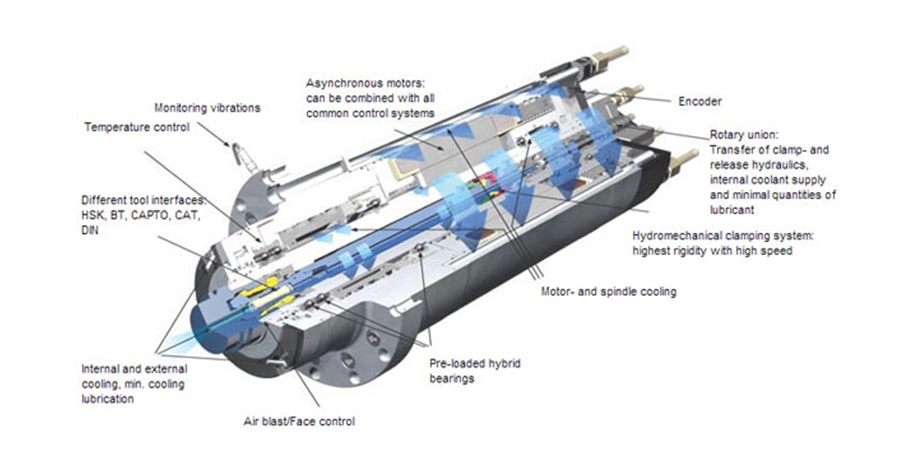

Machine Tools
